Sensor configuration and sensor types for ProCollect

The sensor type used for measurement points is specified in Enlight centre, which is then indicated in ProCollect. The user is instructed and restricted to only use the specified internal QuickCollect sensor, and if needed for certain points, an extension sensor.

The specification is based on the configuration of the measurement or the QuickCollect point.
Note: The sensor with model number CMDT 390 is not compatible with the extension sensor.

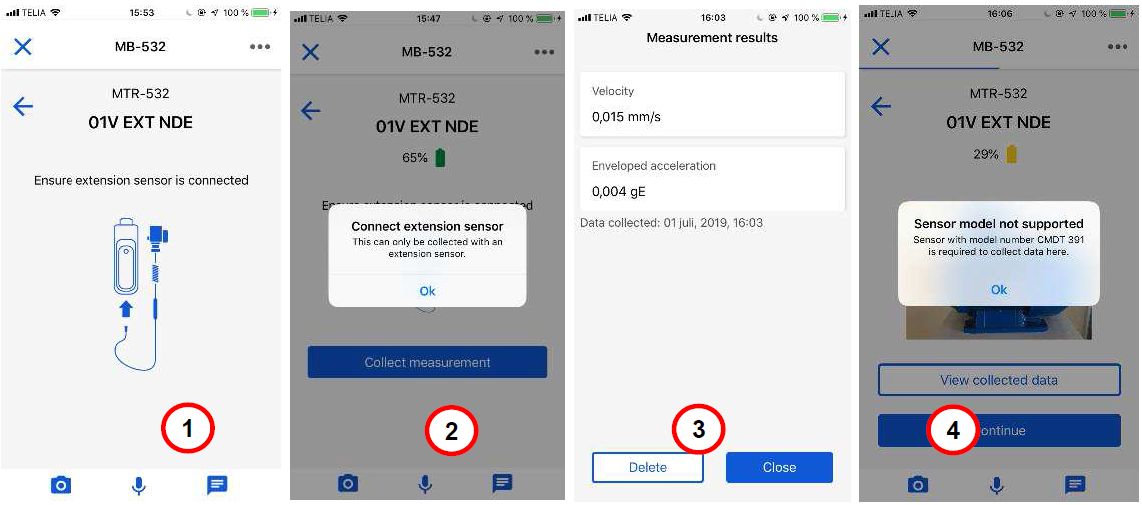

The following indicators related to sensors are displayed in the ProCollect app:

1. An extension sensor must be connected.
2. The selected point requires an extension sensor
3. The extension sensor only collects vibration data, such as velocity and enveloped acceleration. Note: Temperature is not collected with the extension sensor.
4. An unsupported sensor model is used, recommendation to change to a supported sensor model.

Extension sensor
